Product Introduction

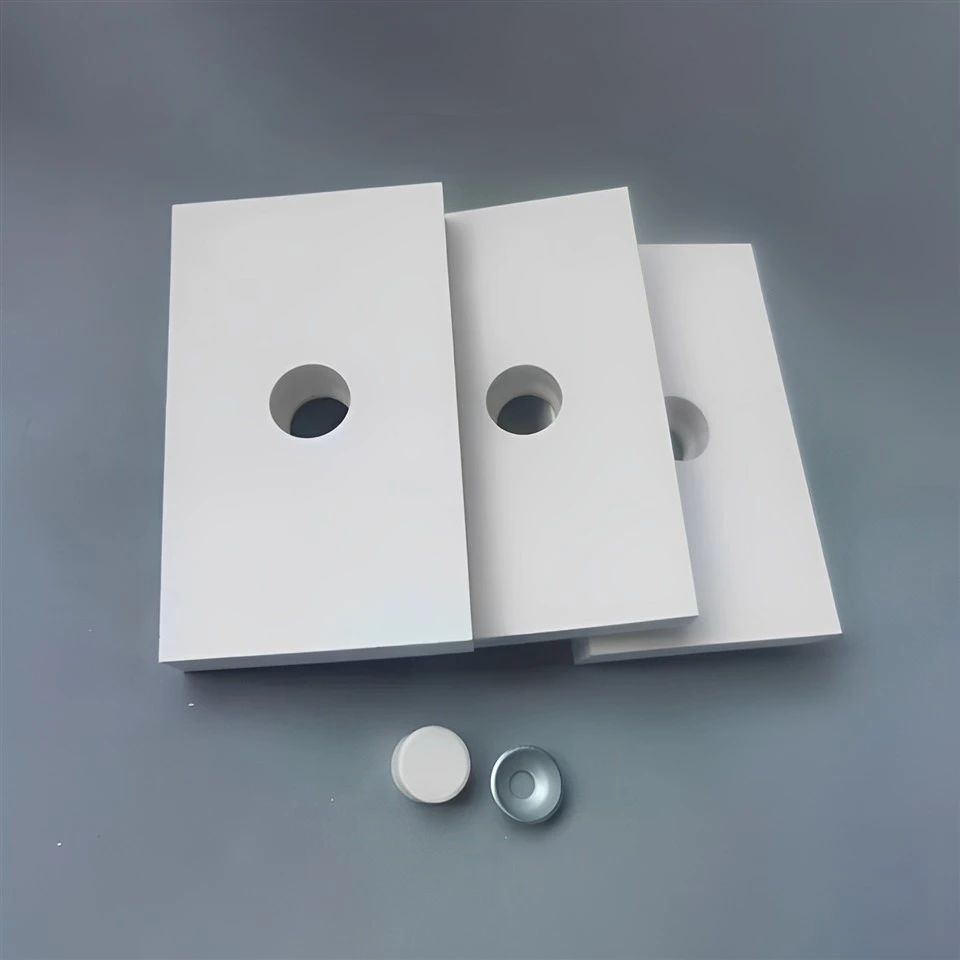

Ceramic liner alumina ceramic plate have excellent wear resistance. Generally, their hardness can reach Mohs hardness level 9, second only to natural diamonds and artificial diamonds with Mohs hardness of 10. Therefore, it can provide good protection for equipment in various harsh working environments, avoiding damage to equipment due to wear and tear.
Ceramic liner alumina ceramic plate have high density and therefore have good pressure resistance, so there is no need to worry about the risk of breakage during transportation or use. The density of the material can also be adjusted according to the specific usage situation to increase the corrosion resistance and fire resistance of the material.
At the same time, the insulation performance of ceramic liner alumina ceramic plate is also quite excellent, which can effectively isolate high-voltage and high-voltage electrical signals, avoid problems such as short circuits and leakage in electrical appliances, and thus ensure the safe operation of electrical equipment.
In addition, the chemical properties of ceramic liner alumina ceramic plate is quite stable, and even in harsh acidic environments such as acid and alkali, chemical changes will not occur. Therefore, in some acidic chemistry experiments, electronic semiconductor manufacturing, precision steel production, chemical reaction kettles, liquids or solids, pollutants, etc. that come into contact with them will not react, thus maintaining the properties and characteristics of its own material and possessing unique advantages such as corrosion prevention.
Product Performance Indicators
|
Performance/ product |
The 92 series |
The 95 series |
The 97 series |
The 99 series |
|
AL203（%） |
≥92 |
≥95 |
≥97 |
≥99 |
|
Moh's hardness |
9 |
9 |
9 |
9 |
|
water absorption（%） |
≤0.02 |
≤0.02 |
≤0.02 |
≤0.02 |
|
Breakingstrength （n/mm） |
40 |
42 |
44 |
48 |
|
Bending strength (Mpa） |
255 |
257 |
285 |
300 |
|
Bulk density （g/m3） |
≥3.63 |
≥3.68 |
≥3.73 |
≥3.83 |
