Product content

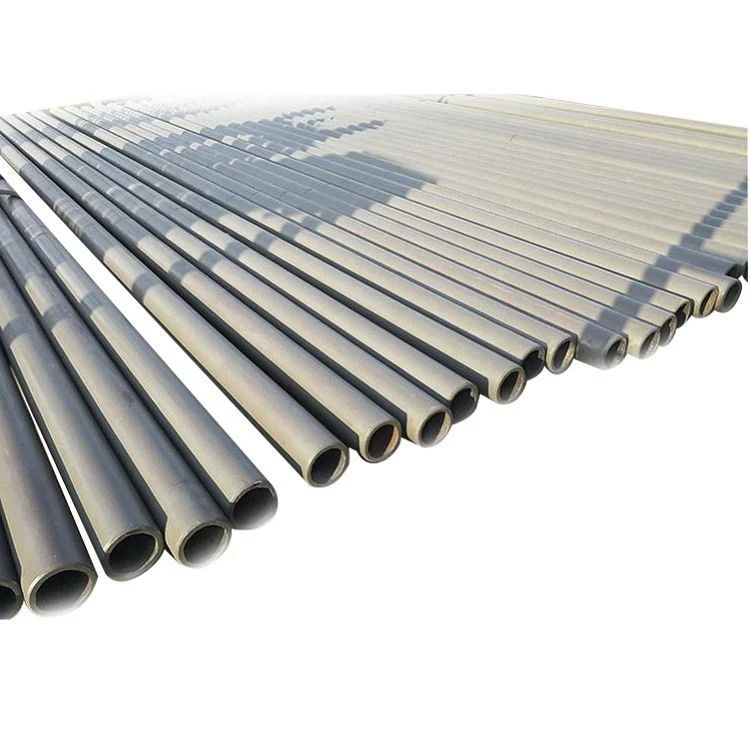

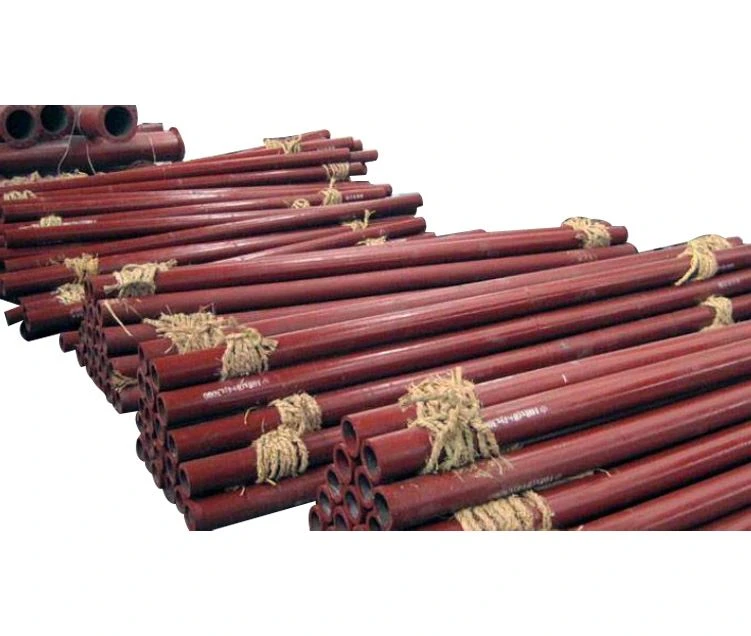

The wear-resistant ceramic composite tube is corundum ceramic (a-AL2O3), which is a single stable crystalline structure. Therefore, the composite pipe can operate normally in the temperature range of 50-700℃ for a long time. The coefficient of linear expansion of the material is 6-8×10-6/0C, which is about 1/2 of that of the steel pipe. The material has good thermal stability. It has the characteristics of high wear resistance, long service life, convenient installation and remarkable economic benefits.
Product parameters
Contrast test of abrasion resistance of conveying iron ore concentrate
|
Material |
Time |
Surface wear mm |
Average annual wear rate ㎜/a |
Average annual wear rate ratio |
|
Ceramic steel pipe |
April 2002 to April 2005 |
0.12 |
0.04 |
20#Carbon steel pipe÷ceramic steel pipe=175 |
|
20#Steel pipe |
April 2002 to April 2005 |
Stand up once Change the tube once |
7 |
Note: ①The pipeline of the mine's gravity separation workshop, the ore size is less than 2mm, and the weight concentration is 30%
