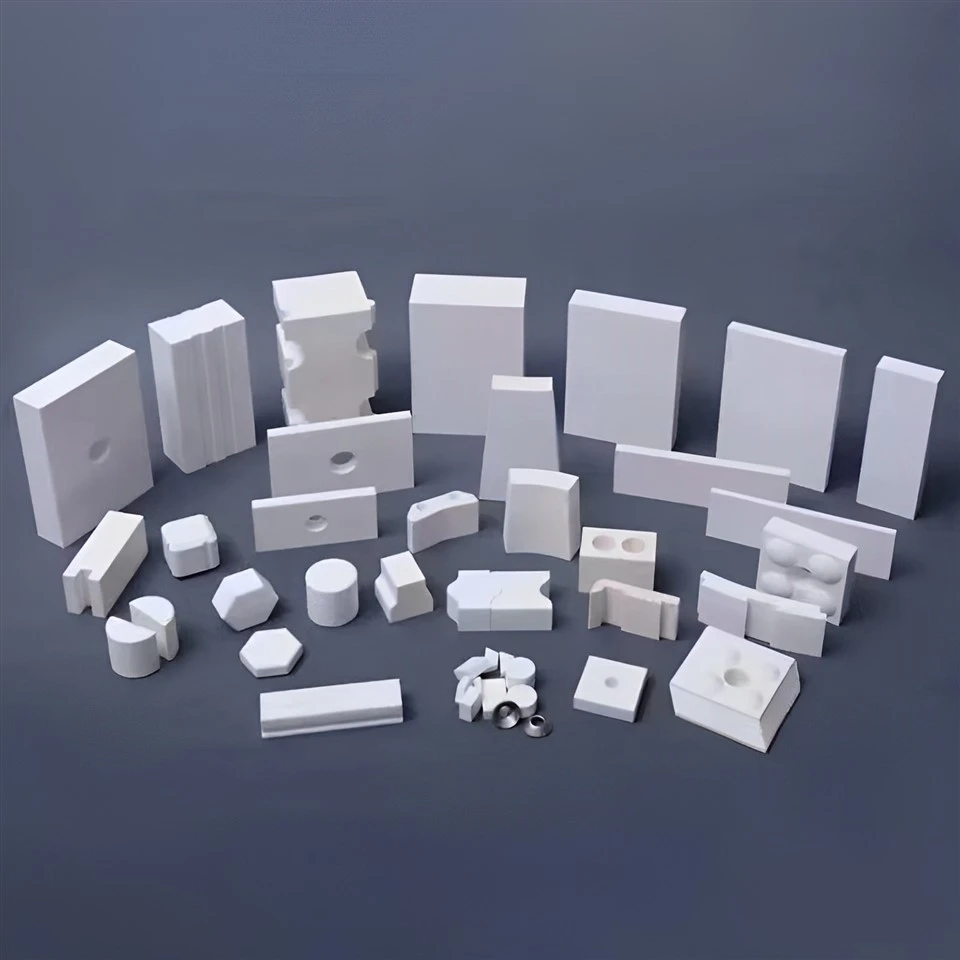

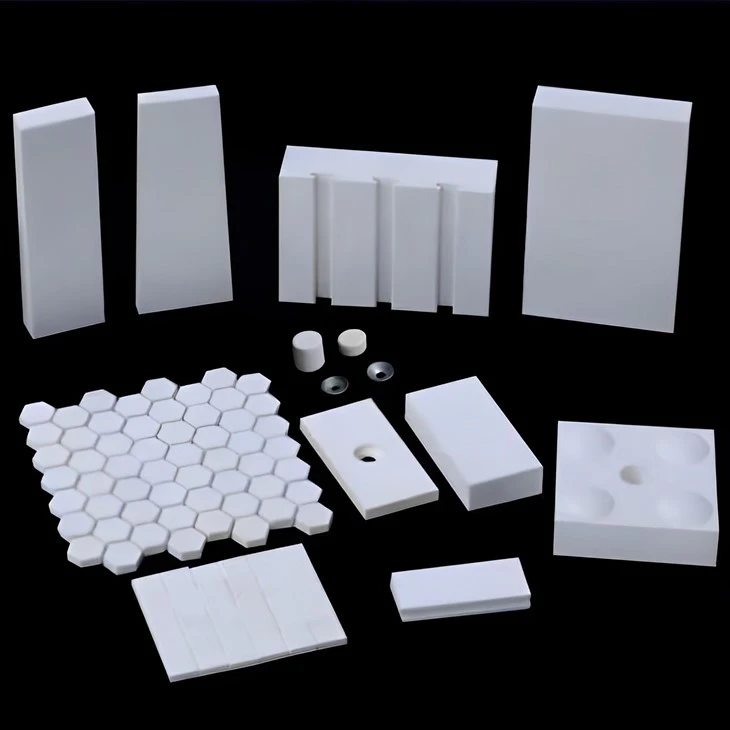

Alumina wear-resistant ceramic liner is widely used in various construction machinery, electronics, chemical industry, metallurgy, steel, petroleum, coal mining, mechanical equipment, textile fiberglass, ceramic composite pipes, cement cyclones, metal composite pipes and elbows, chute wear-resistant lining, pipe wear-resistant grinding lining, preheater hanging piece, powder grinding disc, and other parts that require wear resistance, high temperature resistance, and corrosion resistance, as well as high-tech fields such as aviation, aerospace, automobiles, national defense, and environmental protection, and can be made into insulating devices and Excellent grinding media, etc. According to specific data requirements, alumina content, tolerances, drawings or uses, etc., alumina wear-resistant ceramic liner is support product customization.
Product Performance Indicators
|
Performance/ product |
The 92 series |
The 95 series |
The 97 series |
The 99 series |
|
AL203(%) |
≥92 |
≥95 |
≥97 |
≥99 |
|
Moh's hardness |
9 |
9 |
9 |
9 |
|
water absorption(%) |
≤0.02 |
≤0.02 |
≤0.02 |
≤0.02 |
|
Breakingstrength (n/mm) |
40 |
42 |
44 |
48 |
|
Bending strength (Mpa) |
255 |
257 |
285 |
300 |
|
Bulk density (g/m3) |
≥3.63 |
≥3.68 |
≥3.73 |
≥3.83 |
Product Specification
|
Product |
Long(mm) |
Wide(mm) |
High(mm) |
|
10*10 |
10 |
10 |
3-10 |
|
17.5*17.5 |
17.5 |
17.5 |
4-10 |
|
23.7*23.7 |
23.7 |
23.7 |
5-15 |
|
50*25 |
50 |
25 |
5-10 |
|
50*50 |
50 |
50 |
5-15 |
|
100*100 |
100 |
100 |
6.5-15 |
|
120*80 |
120 |
80 |
6-20 |
|
150*60 |
150 |
60 |
10-25 |
|
150*100 |
150 |
100 |
6-25 |
|
150*100 |
150 |
100 |
12-20 |
Product Characteristics
1. Acid and alkali resistance: The rubber adopts a new formula of acid and alkali resistant rubber, which can resist weak acid and weak alkali:
2. Wear resistance: Alumina wear-resistant ceramic liner's hardness is above HRA85.
3. Impact resistance: The toughened ceramic formula ensures that the alumina wear-resistant ceramic liner is not easy to break, and the unique spherical design and high-quality buffer layer can resist the impact of large materials;
4. Anti-shedding: The ceramic rubber steel plate is vulcanized in one piece, and the combination is very firm; each piece of ceramic has a penetrating bolt passing through the bottom steel plate, which is firmly welded and has good stability;
5. High temperature resistance: It can operate at 0℃-300℃ for a long time;
6. Easy installation and replacement: It is provided with a whole alumina wear-resistant ceramic liner, which is convenient for replacement and installation, and reduces after-sales service:
7. Reduced maintenance: Super wear resistance greatly reduces the frequency of maintenance, saving costs and labor.
