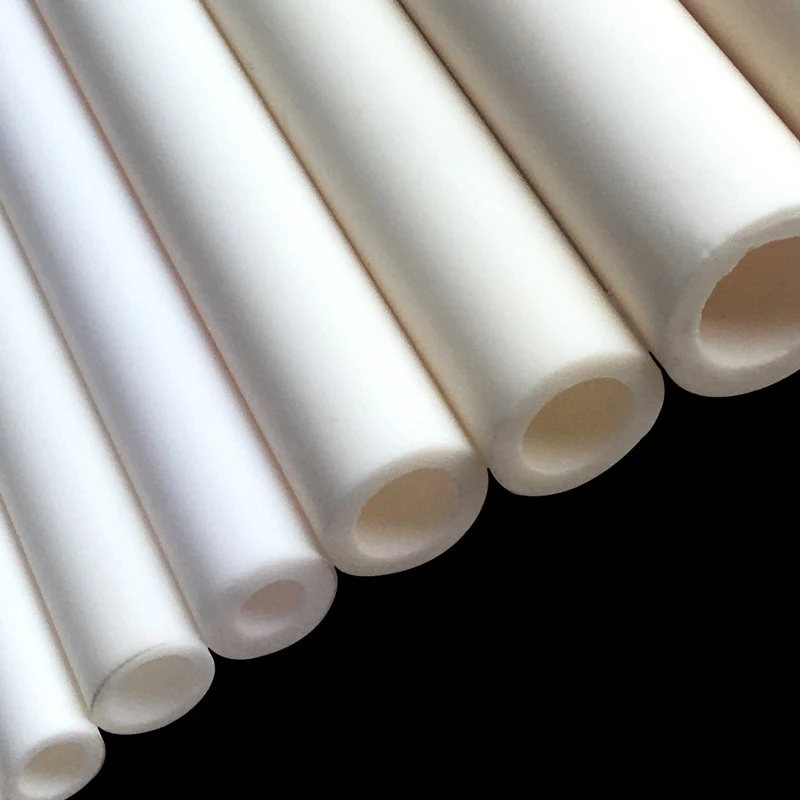

High alumina ceramic tube with high purity alumina as the main raw material, after high temperature firing, with high temperature resistance, corrosion resistance, good thermal conductivity, oxidation resistance, no deformation and no shrinkage characteristics, can effectively prevent high temperature solution on the electric heating element (silicon carbon rod, electric furnace wire) erosion, greatly improve the service life of products. The high alumina ceramic tube is widely used in ceramics factory, annealing furnace, glass kiln, electric furnace products, non-ferrous metal smelting, zinc and aluminum factory and other industries.
Product Parameters
|
Porcelain-clad wear-resistant composite steel pipe |
|||||
|
Serial number |
diameter (mm) |
unit |
Steel pipe thickness/weight (kg) |
Porcelain thickness/heavy (kg) |
pressure Mpa |
|
1 |
￠76 |
meter |
3/10.36 |
4/10.92 |
3.0MPa |
|
2 |
￠89 |
meter |
3/12.29 |
4/12.75 |
3.0MPa |
|
3 |
￠114 |
meter |
4/15.98 |
6/16.33 |
3.0MPa |
|
4 |
￠133 |
meter |
4/18.80 |
6/19.05 |
3.0MPa |
|
5 |
￠159 |
meter |
4/22.64 |
10/22.77 |
3.0MPa |
|
6 |
￠219 |
meter |
6/41.63 |
10/31.36 |
3.0MPa |
|
7 |
￠273 |
meter |
6/52.29 |
12/39.09 |
2.0MPa |
|
8 |
￠325 |
meter |
6/62.55 |
12/46.54 |
2.0MPa |
|
9 |
￠377 |
meter |
8/72.80 |
12/53.98 |
2.0MPa |
|
10 |
￠426 |
meter |
8/82.47 |
12/61.00 |
2.0MPa |
|
11 |
￠480 |
meter |
8/116.00 |
12/68.73 |
1.6MPa |
|
12 |
￠530 |
meter |
10/128.24 |
12/75.89 |
1.6MPa |
|
Note: It depends on the actual user pressure. |
|||||
