Product content

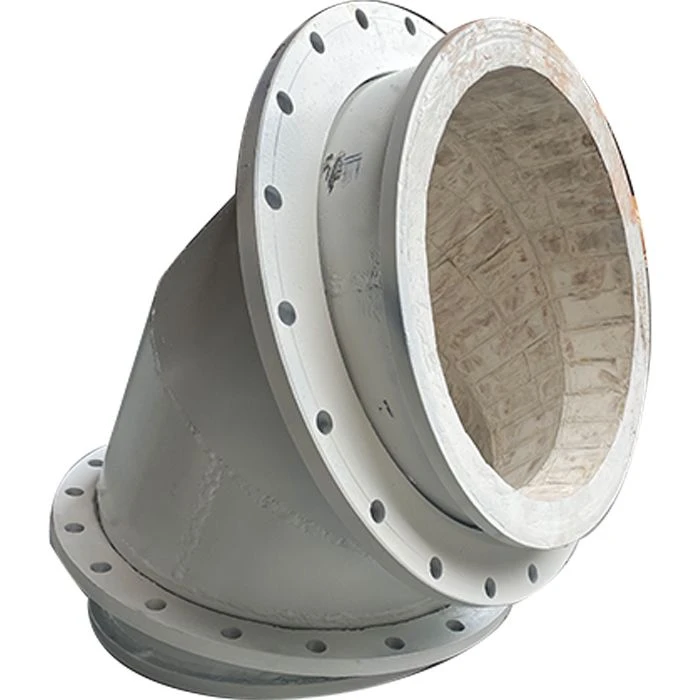

For ceramic tile lining elbows, the national authoritative inspection department detects the tensile strength of the adhesive surface ≥24.2Mpa; the tensile strength at 260℃≥18Mpa; the shear strength of the adhesive surface ≥7.08Mpa; temperature resistance: -35～1250℃ . Welded steel bowls and bolts (weldable wear-resistant and heat-resistant steel) Basic features: wear resistance, high welding strength, high temperature resistance, and good thermal stability. Technical parameters: Tensile strength of welding surface ≥199Mpa; Shear strength of welding surface ≥32.2Mpa; High temperature resistance: 1450℃.
Product parameters
Contrast test of elbows with different materials for powder feeding pipelines in thermal power plants
|
Material |
Specification |
Working condition |
Usage |
|
20#Carbon Steel Pipe |
DN350×10 |
100,000 KW unit, use Coal ash content reaches 45%, each Each tube delivers 42 tons of powder. |
1 month wear |
|
High chromium alloy cast steel pipe |
DN350×25 |
11 months wear |
|
|
Jacketed cast stone pipe |
DN350×55 |
23 months wear |
|
|
Ceramic steel pipe |
DN350×15 |
It has been used for 24 months and only wears off 0.2 mm |
