Product content

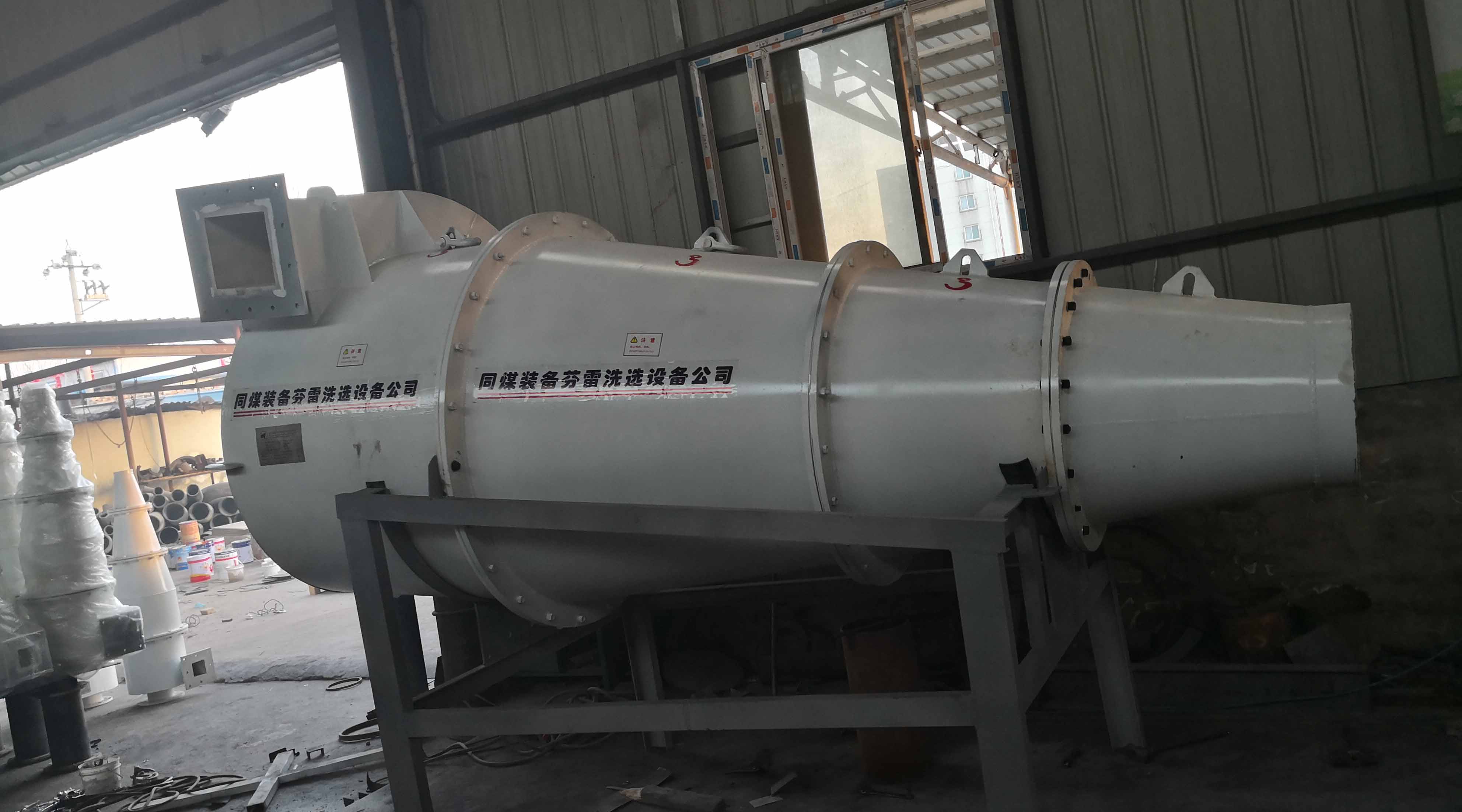

The equipment and materials of the cyclone splitter are severely worn and need to be adjusted or even replaced frequently, which seriously affects the quality and efficiency of mineral processing. According to the general size and shape of the cyclone, our company can tailor design and manufacture various cyclone splitter wear-resistant tubes. The material is alumina wear-resistant ceramics or high wear-resistant composite ceramics. The wear resistance of the material can ensure the swirling flow. The device can work continuously and stably for a long time, the service life is 4-6 times that of ordinary polyurethane materials, and the cost performance is very high.
Product parameters
Porcelain-clad wear-resistant composite steel pipe | |||||
Serial number | diameter （mm） | unit | Steel pipe thickness/weight （kg) | Porcelain thickness/heavy （kg) | pressure Mpa |
1 | ￠76 | meter | 3/10.36 | 4/10.92 | 3.0MPa |
2 | ￠89 | meter | 3/12.29 | 4/12.75 | 3.0MPa |
3 | ￠114 | meter | 4/15.98 | 6/16.33 | 3.0MPa |
4 | ￠133 | meter | 4/18.80 | 6/19.05 | 3.0MPa |
5 | ￠159 | meter | 4/22.64 | 10/22.77 | 3.0MPa |
6 | ￠219 | meter | 6/41.63 | 10/31.36 | 3.0MPa |
7 | ￠273 | meter | 6/52.29 | 12/39.09 | 2.0MPa |
8 | ￠325 | meter | 6/62.55 | 12/46.54 | 2.0MPa |
9 | ￠377 | meter | 8/72.80 | 12/53.98 | 2.0MPa |
10 | ￠426 | meter | 8/82.47 | 12/61.00 | 2.0MPa |
11 | ￠480 | meter | 8/116.00 | 12/68.73 | 1.6MPa |
12 | ￠530 | meter | 10/128.24 | 12/75.89 | 1.6MPa |
Note: It depends on the actual user pressure. | |||||
FAQ
1. What is your mode of transportation?
Answer: Shipping, shipping
2. Why is your price higher than others?
Answer: Because the quality of the products must be guaranteed, the raw materials we use are all of high quality and strictly controlled. We cannot achieve the lowest price, but we will ensure that the quality is passed. So there will be differences in prices. The quality of raw materials differs greatly in price.
3. How long can you usually deliver?
Answer: Plan according to your needs.
4. Do you ensure delivery on due date?
If the goods do not arrive on time, what compensation do you have? Answer: We will ensure that the products are completed within the promised time limit, and we will select transportation service providers with excellent services to cooperate to ensure that the goods arrive on time.
