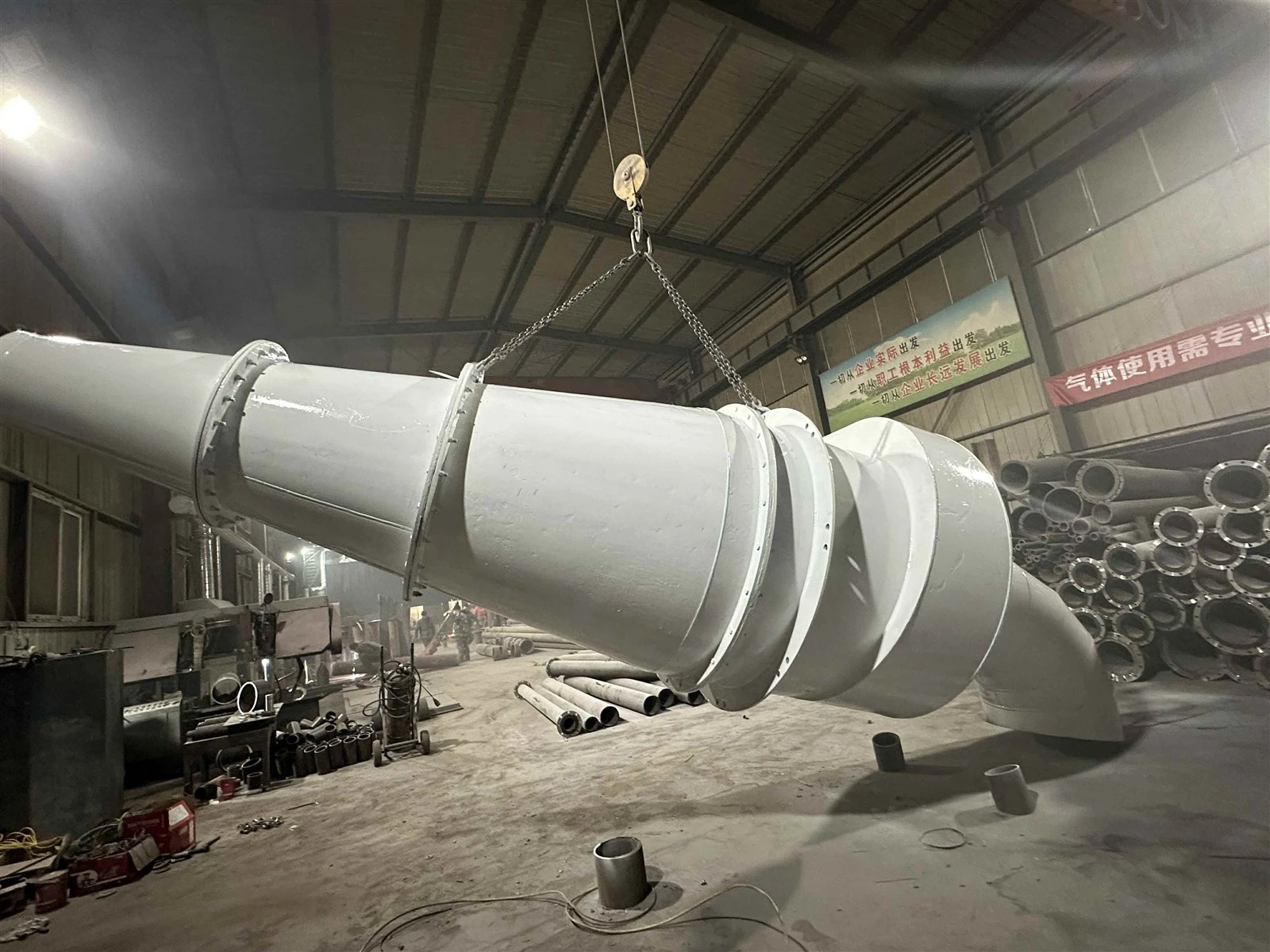

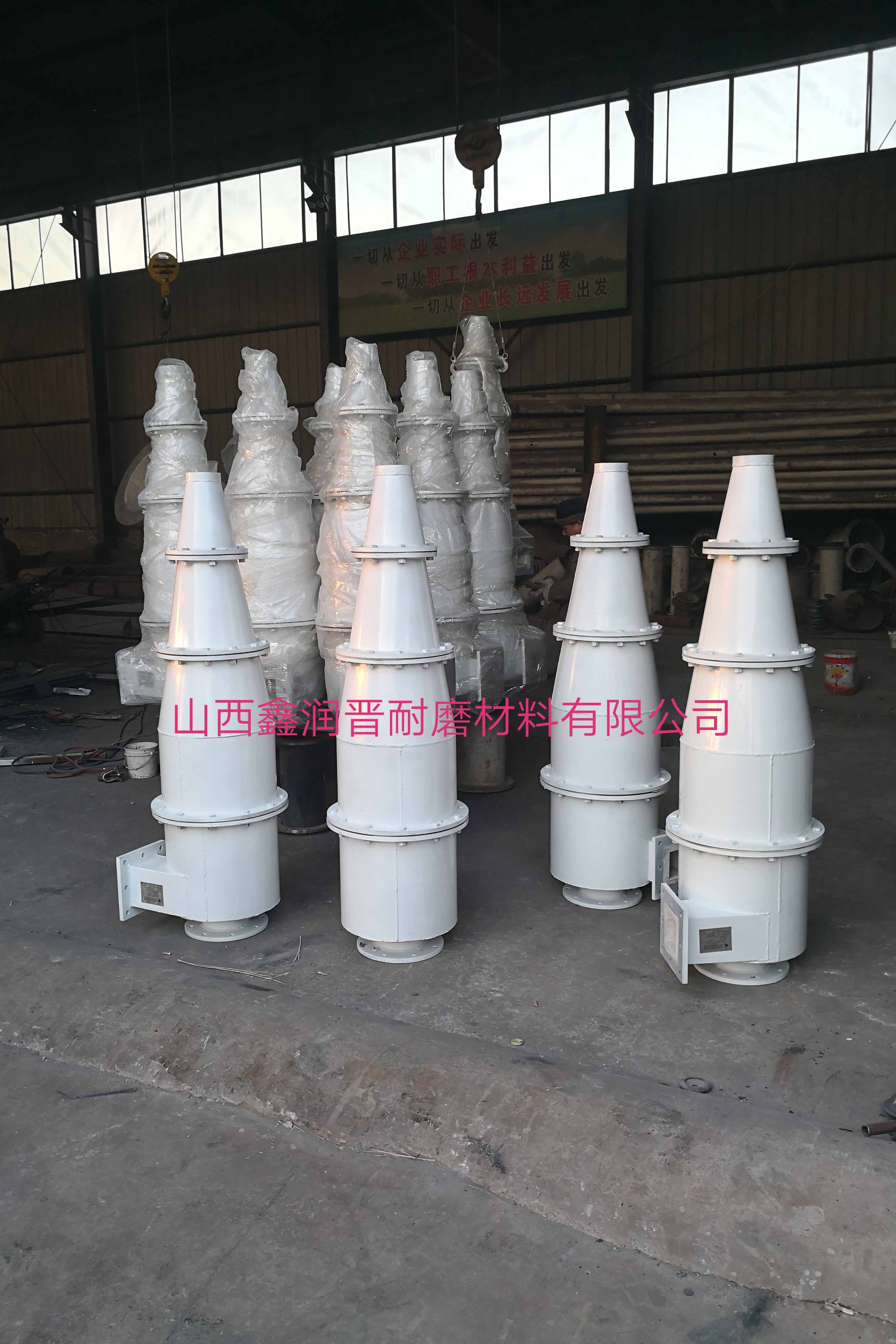

Product Overview
Shanxi Huazhan Wear-Resistant Material Technology Co., Ltd., a leading industrial separation technology innovator specializing in high-performance Cyclone Separator designed for mining, coal washing, power generation, and environmental protection applications. With over 20 years of expertise in wear-resistant solutions, the company combines advanced engineering with robust materials to deliver equipment that excels in efficiency, durability, and adaptability
Technical Advantages of Cyclone Separator
1. High Precision: Advanced Dual-Stage Separation Technology
Our cyclone separator employs a patented dual-stage separation mechanism that combines a primary cylindrical cyclone with a secondary cylindrical-conical cyclone. This design amplifies centrifugal acceleration (up to 200× gravity) to achieve >95% purity in product streams.
Primary Stage: Coarse separation occurs in the cylindrical section, where high-density particles (e.g., gangue) are rapidly expelled to the outer wall.
Secondary Stage: The conical geometry intensifies centrifugal forces, enabling fine-tuning of middlings (intermediate-density materials) and eliminating residual contaminants.
Smart Control: Optional integration of IoT-enabled density sensors and PLC systems ensures real-time monitoring and adjustment of medium density (±0.1 g/cm³ accuracy), optimizing separation consistency in fluctuating feed conditions.
2. Robust Construction: Engineered for Extreme Durability
Our cyclones are made of carbon steel or, upon request, can be made of high-performance wear-resistant alloys such as ASTM A532 Grade III chrome-molybdenum steel with a 27% chromium content, which excels in abrasive and corrosive environments.
Reinforced Critical Zones: Impact-prone areas (e.g., inlet, cone apex) feature carbide-reinforced composite matrices or replaceable ceramic liners, doubling wear life compared to standard carbon steel models.
Anti-Corrosion Protection: Electropolished surfaces and HVOF (High-Velocity Oxygen Fuel) coatings resist chemical degradation in acidic/alkaline slurries (pH 2–12).
Modular Design: Quick-release clamps and standardized flange connections enable rapid maintenance, reducing downtime by 40%.
3. Adaptability: Versatile Performance Across Industries
Designed for multi-industry scalability, our separators accommodate:
Broad Particle Range: Handles feed sizes from ultrafine powders (0.1 mm) to coarse aggregates (50 mm) with adjustable vortex finder and apex configurations.
Dynamic Density Adjustment: Suspension density can be tuned from 1.3 g/cm³ (coal) to 3.8 g/cm³ (metal ores) via automated medium blending systems.
Material Flexibility: Processes diverse inputs, including high-sulfur coal, iron ore tailings, recycled plastics, and lithium slag, without performance loss.
Retrofit Compatibility: Bolt-on upgrades allow integration into existing mineral processing or waste recovery lines, minimizing capital expenditure.
4. Energy Efficiency: Sustainable Hydraulic Optimization
Our cyclones feature CFD-optimized geometries that reduce energy consumption while maintaining throughput:
Low-Pressure Drop Design: Helical inlets and tapered vortex chambers minimize turbulence, cutting pump power requirements by 15–25%.
Medium Recycling: A closed-loop system recovers and recycles 90% of the dense medium, slashing fresh medium consumption by 15–20%.
Heat Recovery: Optional heat exchangers capture waste thermal energy from high-temperature slurries (e.g., cement kiln dust), repurposing it for plant heating or pre-drying feed materials.
5. Compliance & Sustainability
Zero-Leakage Seals: Labyrinth seals and triple-lip gaskets prevent medium leakage, aligning with ISO 14001 environmental standards.
Noise Reduction: Sound-dampening external cladding lowers operational noise to <75 dB, meeting OSHA workplace safety guidelines.
Product parameters
|
Alumina ceramic-lined wear-resistant composite steel pipe |
|||||
|
Serial number |
diameter (mm) |
unit |
Steel pipe thickness/weight (kg) |
Alumina ceramic thickness thickness/heavy (kg) |
pressure Mpa |
|
1 |
￠76 |
meter |
3/10.36 |
4/10.92 |
3.0MPa |
|
2 |
￠89 |
meter |
3/12.29 |
4/12.75 |
3.0MPa |
|
3 |
￠114 |
meter |
4/15.98 |
6/16.33 |
3.0MPa |
|
4 |
￠133 |
meter |
4/18.80 |
6/19.05 |
3.0MPa |
|
5 |
￠159 |
meter |
4/22.64 |
10/22.77 |
3.0MPa |
|
6 |
￠219 |
meter |
6/41.63 |
10/31.36 |
3.0MPa |
|
7 |
￠273 |
meter |
6/52.29 |
12/39.09 |
2.0MPa |
|
8 |
￠325 |
meter |
6/62.55 |
12/46.54 |
2.0MPa |
|
9 |
￠377 |
meter |
8/72.80 |
12/53.98 |
2.0MPa |
|
10 |
￠426 |
meter |
8/82.47 |
12/61.00 |
2.0MPa |
|
11 |
￠480 |
meter |
8/116.00 |
12/68.73 |
1.6MPa |
|
12 |
￠530 |
meter |
10/128.24 |
12/75.89 |
1.6MPa |
|
Note: It depends on the actual user pressure. |
|||||
Cyclone Separator' s Working Principle
Our cyclone separator leverage centrifugal force and density differentials to achieve accurate material stratification. Key operational features include:
Dual-Stage Separation:
Primary Cylindrical Cyclone: Raw coal is fed through the top central inlet, while a high-density suspension medium is pressurized and injected tangentially from the lower section. Under centrifugal force, low-density "light products" (e.g., clean coal) ascend through the central vortex and exit via the overflow outlet.
Secondary Cylindrical-Conical Cyclone: High-density "heavy products" (e.g., gangue) migrate along the outer wall into the secondary stage for further refinement, enabling precise separation of middlings and tailings.
Efficient Flow Dynamics:
Light products exit with low-density suspension through the inner spiral, while heavy products and dense medium discharge via the outer spiral, minimizing cross-contamination.
Quality Commitment
Adhering to ISO 9001 standards, Huazhan implements rigorous quality control protocols-from raw material inspection to final product testing-to guarantee unmatched durability and performance. Our "Quality First, Reputation Foremost" philosophy has earned long-term partnerships with industry leaders.
Applications
Mining: Coal beneficiation, ore sorting.
Energy: Fly ash separation, biomass processing.
Industrial: Chemical recycling, aggregate classification.
Why Choose Huazhan?
20+ Years of Expertise: As a wear-resistant piping manufacturer, we integrate cutting-edge production technologies (e.g., automated casting, ISO-certified QC) with deep industry insights.
Innovation-Driven: Our R&D team (10+ engineers) holds 12+ patents, delivering customized solutions for mining, power generation, metallurgy, and new energy sectors.
Scalable Capacity: Monthly output of 1,300 tons of wear-resistant pipes and 110+ product variants ensures timely delivery for global projects.
Proven Reliability: Products are deployed across 31+ countries, excelling in harsh environments such as coal washing plants and mineral processing facilities.
Contact Us
Elevate your material processing efficiency with Huazhan's cyclone separators, where precision engineering meets relentless innovation. Partner with us to transform your operational outcomes.
